ZCM130 Right-angle Hollow Rotating Platform
Left
  • ZCM130 Right-angle Hollow Rotating Platform
Right

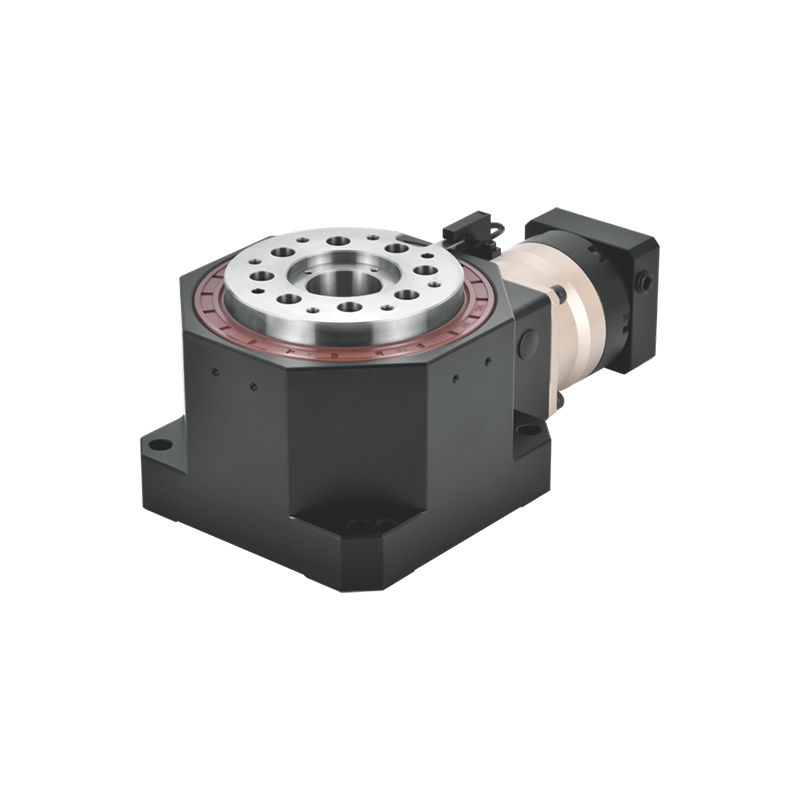

ZCM130 Right-angle Hollow Rotating Platform

  • Model: ZCM-130
  • Bearing structure: Cross roller bearing
  • Reduction ratio: 15/21/30
  • Postioning accuracy: ≤1 arc-min
Feature:Small size, large load torque, low noise, high positioning accuracy, and can achieve any angle positioning. The turntable is a hollow structure, the surface of the rotating platform and the motor are installed at 90 degrees, and the output torque is increased through the design of multi-stage gear transmission. Multiple speed ratios of the same rotating platform are realized. Effectively solve the problem of insufficient installation space due to limited height space. The load can be directly fixed on the hollow rotating platform for transmission, suitable for servo motors and stepping motors of various brands.
Contact us with Mobile/Wechat/WhatsAPP!

+86-15919891652  Leah

Inquiry

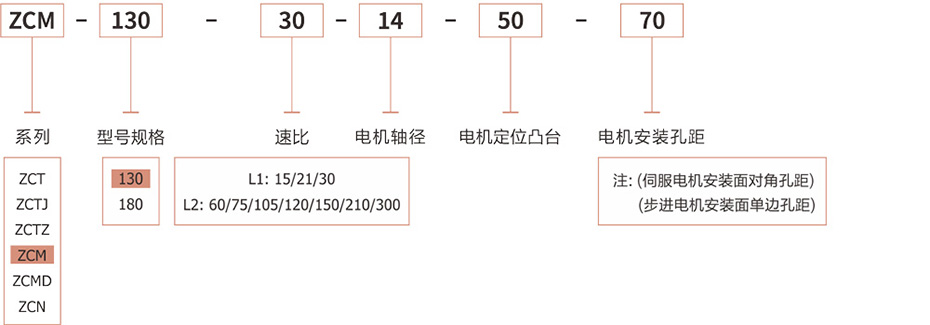

  • Ordering Representation

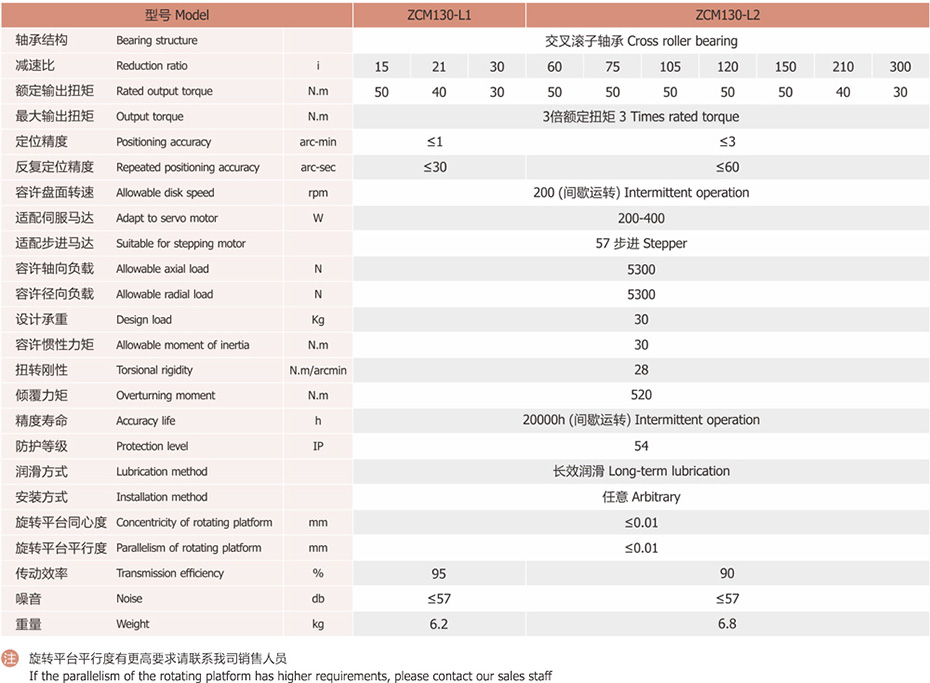

  • Parameters

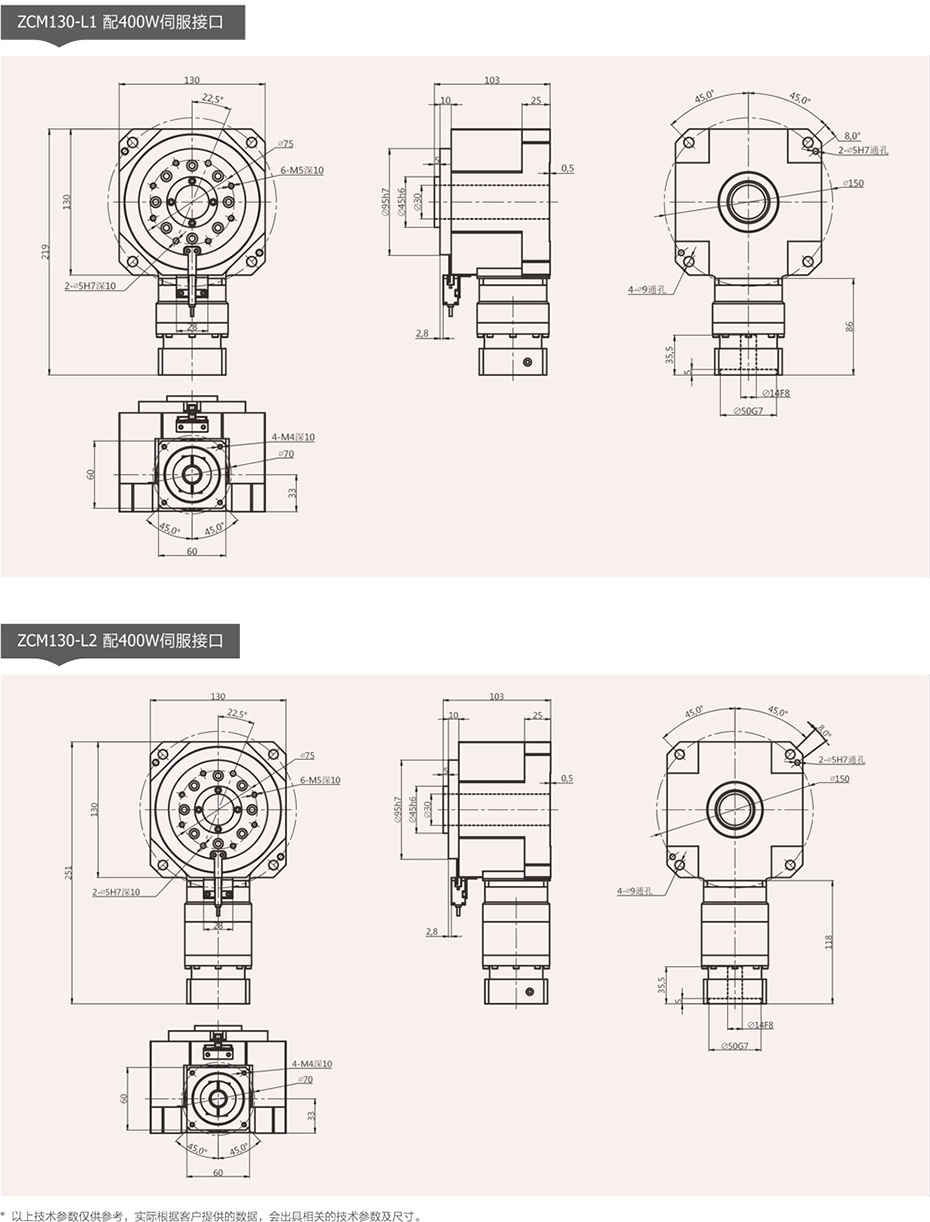

  • Dimension


  • Applications
