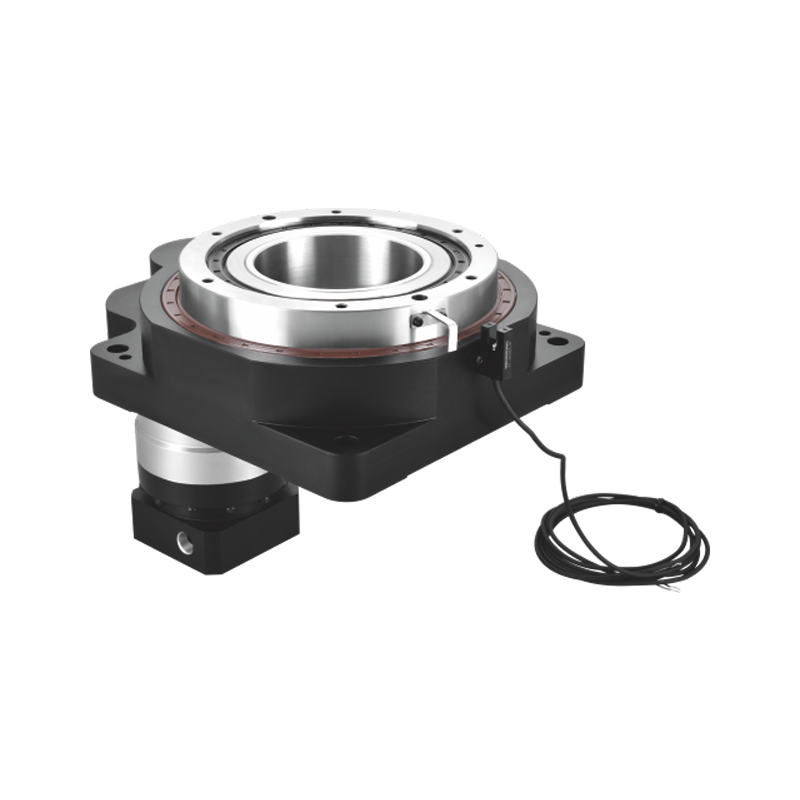

ZCTZ280 Heavy-duty Hollow Rotating Platform
Left
  • ZCTZ280 Heavy-duty Hollow Rotating Platform
Right

ZCTZ280 Heavy-duty Hollow Rotating Platform

  • Model: ZCTZ-280
  • Bearing structure: Cross roller bearing
  • Reduction ratio: 20/25/35/50
  • Postioning accuracy: ≤2 arc-min
Feature:Small size, large load torque, low noise, high positioning accuracy, and can achieve any angle positioning. The turntable has a hollow structure, and the middle hole of the turntable is equipped with an anti-overturning stability ring, and the output torque is increased through a multi-stage gear transmission method. It has realized multiple speed ratios of the same rotating platform, and our ZCTZ has the characteristics of greater carrying torque under the same speed ratio. The load can be directly fixed on the hollow rotating platform for transmission, suitable for servo motors and stepping motors of various brands.
Contact us with Mobile/Wechat/WhatsAPP!

+86-15919891652  Leah

Inquiry

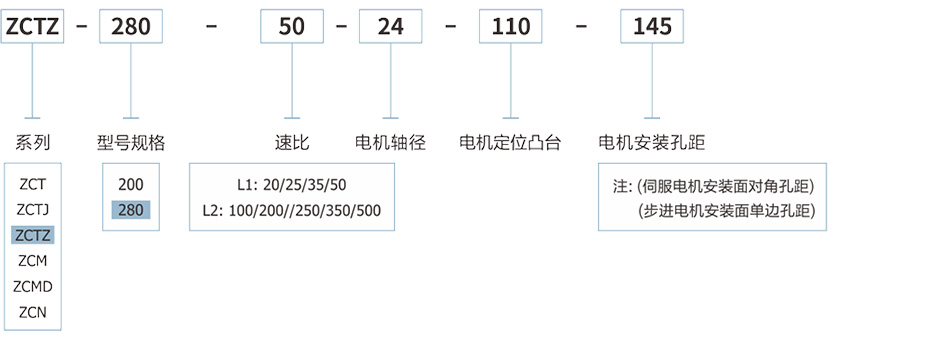

  • Ordering Representation

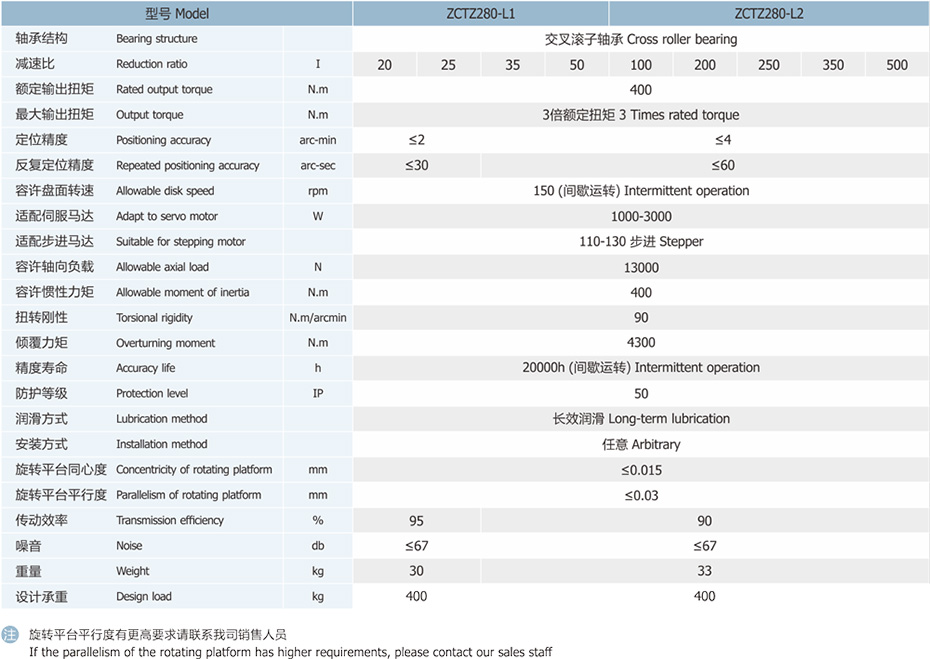

  • Parameters

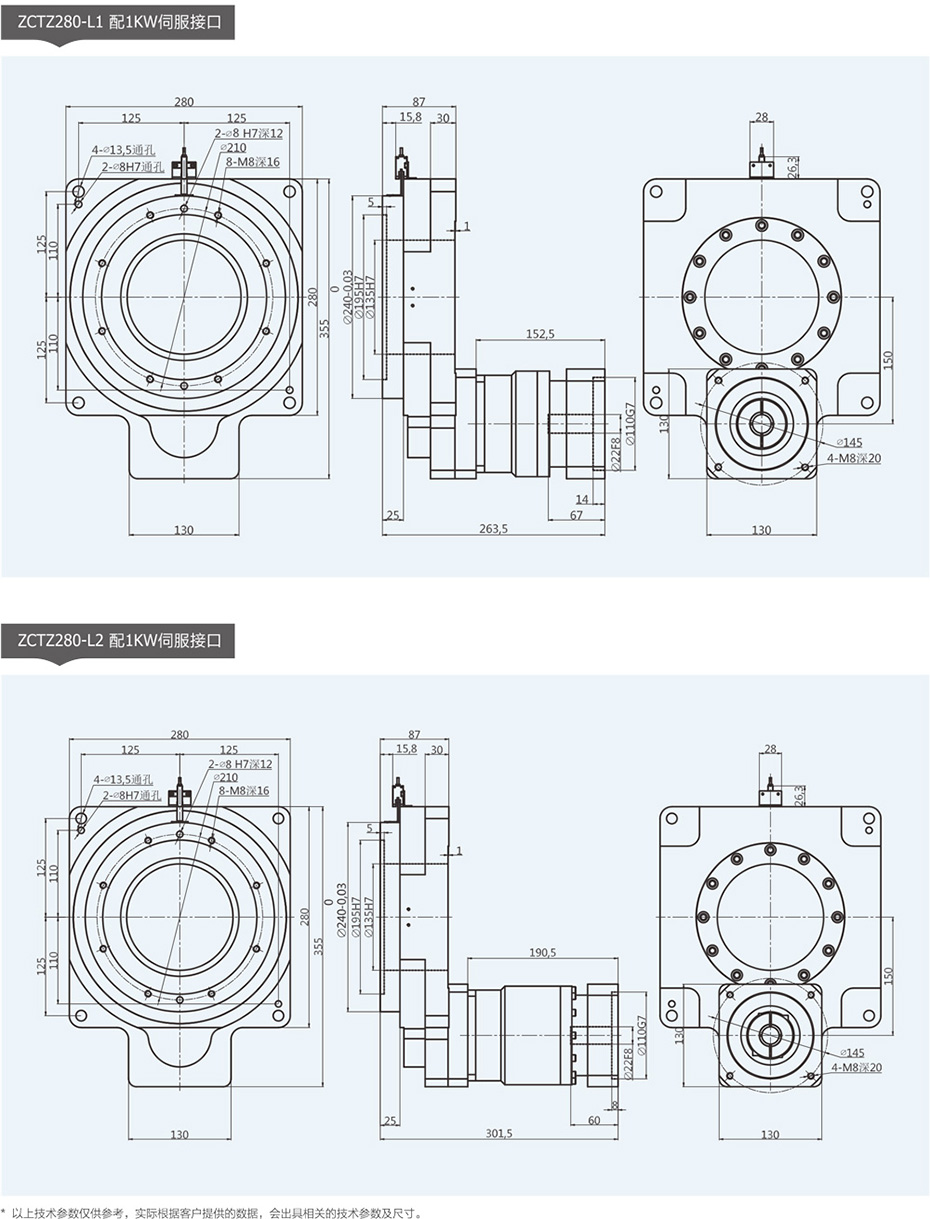

  • Dimension
